Fully Automatic Square Bottom Paper Bag Making Machine ( Auto 360 )
new revolutionary product
Highlights Of This Model
Quality
99%
Speed
95%
Accuracy
100%
Capacity
98%

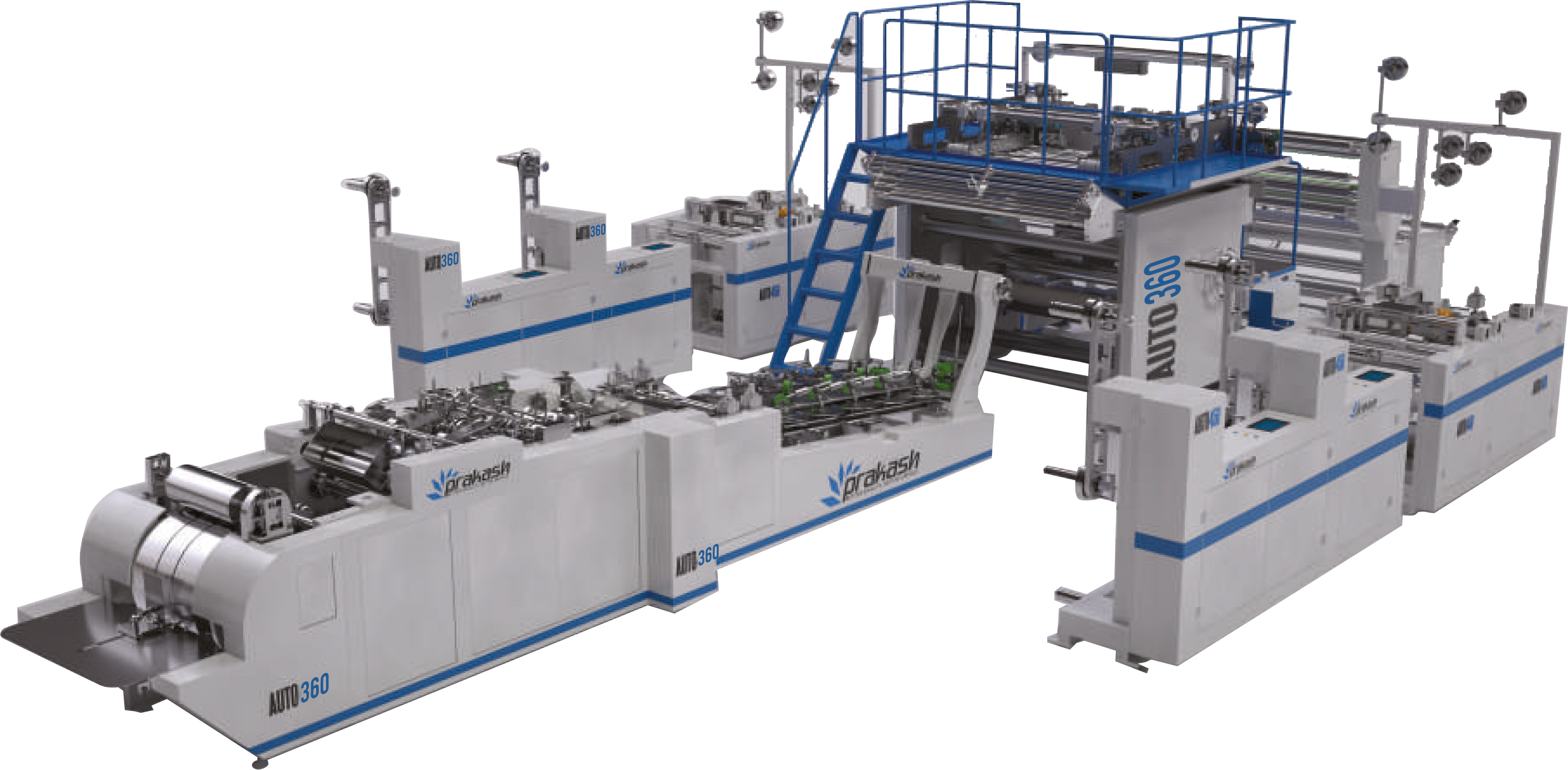

Fully Automatic Square Bottom Paper Bag Making Machine ( Auto 360 )
This is a special machine for the production of shopping bags (block bottom bags) with twisted rope handles or flat belt handles made of paper. The material can be paper roll or printed paper roll. Whole machine is controlled by a computer central control system with touch screen and servo motor for cut-off length control.It can produce variable size paper bags and paste paper handles inline for complete paper bags ready for market without any manual process. The machine automatically feeds paper from roll, tube forming, cut-off, bottom forming, bottom glue, bag forming and final bag output. All steps are completed in-line; This machine is ideal equipment for Twisted or Flat handle square bottom paper bags.
Download Brochure Download Brochure Watch Video Watch Video
Specification Details
Size
13500x5700x2500 MM
weight
18000 KG
Material
Steel & Fiber
Warranty
1 Year
Capacity
100-150 Bags/min
| SPECIFICATIONS | AUTO-360 | AUTO-450 | AUTO-550 |
|---|---|---|---|
| Paper Roll Width | 460-1110mm | 650-1330mm | 670-1670mm |
| Paper Bag Width | 135/180-360mm | 230-450mm | 240-550mm |
| Bottom Size | 80-180mm | 80-200mm | 80-280mm |
| Bag Cutting Length | 270-530mm with handle height |
270-630mm with handle height |
380-780mm with handle height |
| Paper Thickness | 50-150gsm | 65-150gsm | 90-150gsm |
| Handle Height | 90-120mm | 90-120mm | 90-120mm |
| Diameter of Core | 76mm | 76mm | 76mm |
| Lenght of Twisted Rope (Customizable) |
145-165mm | 155-175mm | 155-175mm |
| Diameter of Twisted Rope | 3-6mm | 3-6mm | 3-6mm |
| Handle Patch Lenght | 35-50mm | 35-50mm | 35-50mm |
| Handle Patch Roll Diameter | 1000mm | 1000mm | 1000mm |
| Paper Patch Roll Width | 70-100mm | 70-100mm | 70-100mm |
| Paper GSM for Handle Patch | 80-150gsm | 80-150gsm | 80-150gsm |
| Max Speed* | 100-150 Bags/Min | 100-150 Bags/Min | 100-150 Bags/Min |
| Power | 30Kw | 33Kw | 42Kw |
| Weight | 18000 KG | 19000 KG | 23000 KG |
| Machine Dimension (L*W*H) | 13500x5700x2500mm | 14500x5800x2500mm | 15500x6200x2500mm |
- Laser cut size plate for precision and smooth tube formation.
- Size plate mounting bracket comes with liner and cross setting options.
- Chrome plated size plate for long life and corrosion.
- Side pasting available as an option & On the run gusset size adjustment.
- Size plate provided as a complete set with top and bottom plate, cutting knife and glue strip for really quick bag size changeover resistance.
