PM 1000

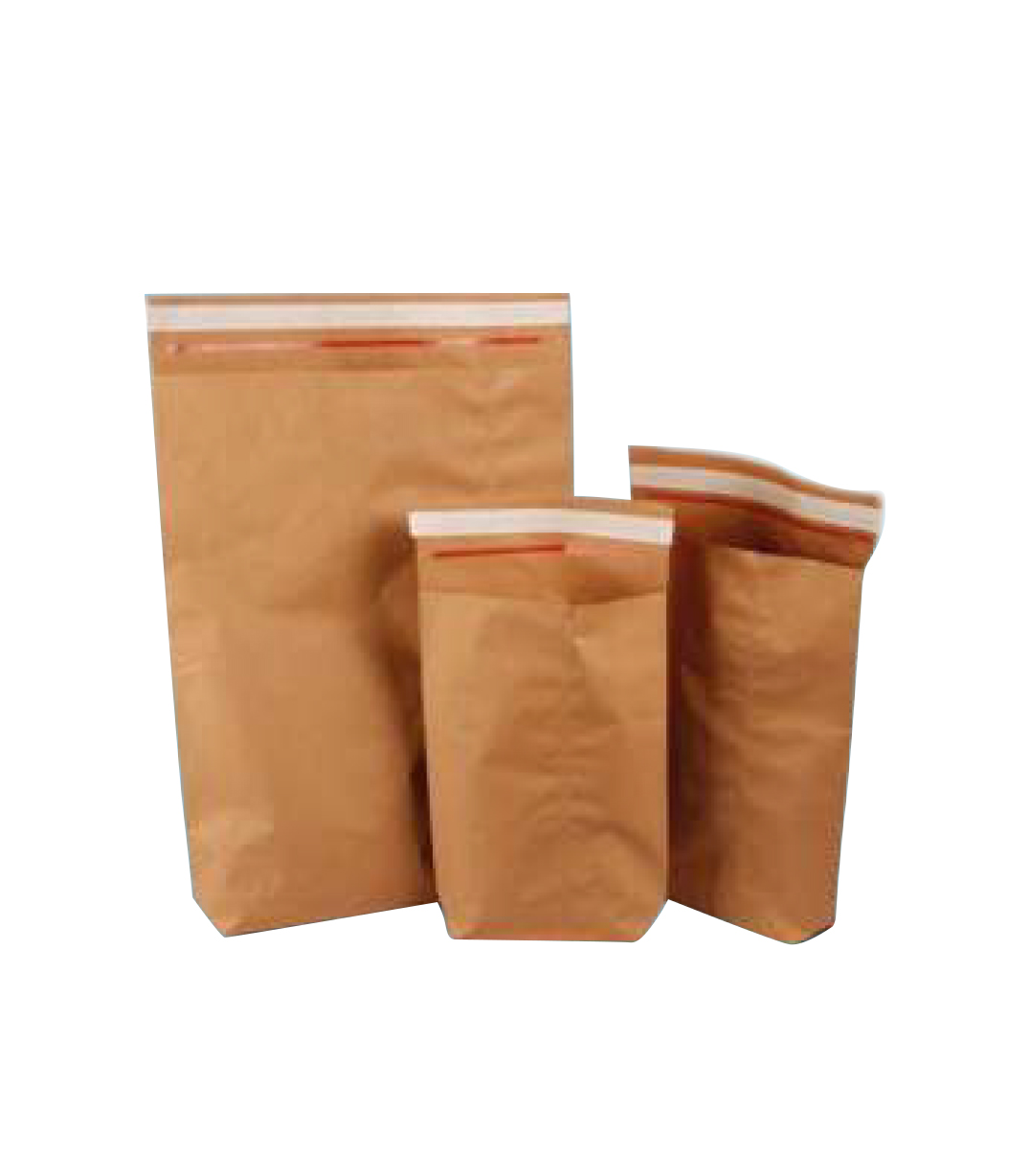

This special machine produces e-commerce peel and seal paper bags. Wtih latest cold glue technology, high production and low operating expense are assured. With these advantages, market competitiveness can be easily achieved. With hot melt system, release tape are also fixed in the machine. Online printing makes machine universal and complete bad with printing can be made in a single pass.
| PARAMETER | SPECIFICATIONS |
|---|---|
| Cut Off Length (rotary) | 270mm - 650mm |
| Cutter Height | 625mm |
| Bottom Gusset | 0-150mm |
| Print Station | 1 Colour |
| Type of glue for bag side sealing | Cold glue |
| Cutting Type | Straight or serrated |
| Speed | 250 bags/min |
| Web Guide | Automatic with ultrasonic sensor |
| Inner diameter of paper | 76mm |
| Max. Roll Weight | 800kg |
| Tension Control | Automatic close loop with load cell |
| Control System | Full servo driven |
| Peel & Seal Mechaniam | Hot Melt with Release Tape |
| Power | 14 KW |
